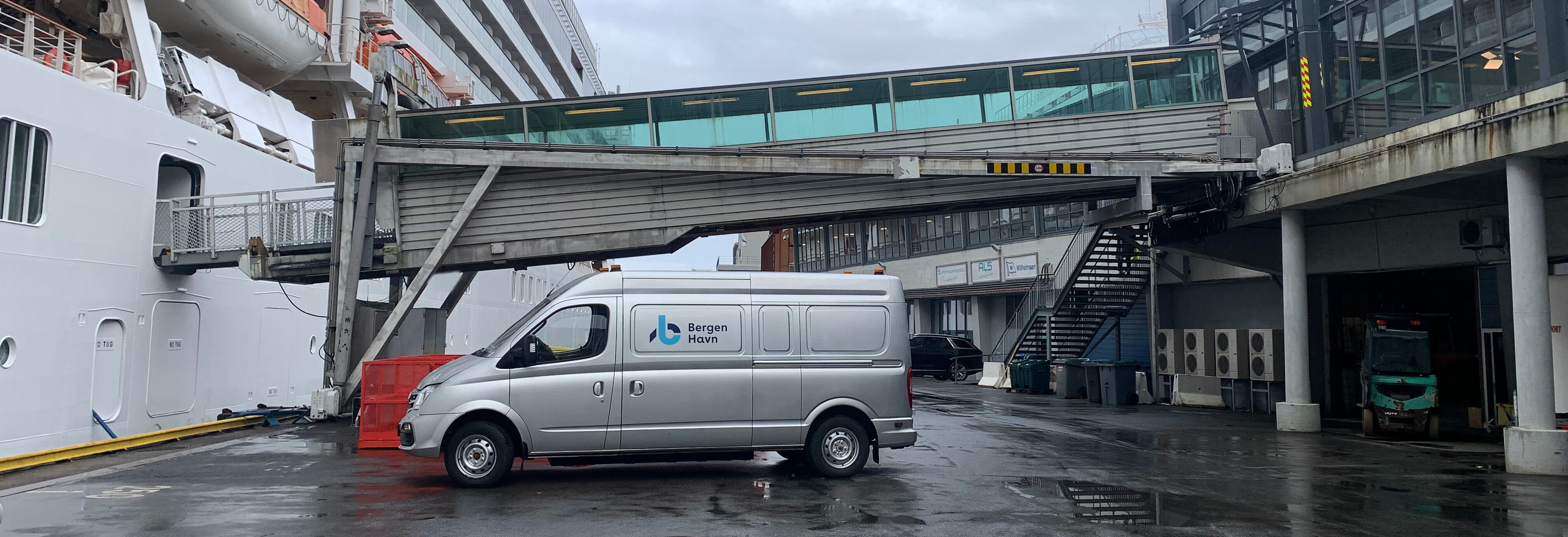

Bergen Port: A more flexible gangway and less noise and power consumption on the generator

- Servi Group has made several improvements to our gangway at Bergen Port. In total, we save both time, electricity and can operate more environmentally friendly. The generator no longer makes noise and we use less electricity. The gangway, which was previously fixed, is now more flexible. With installed cylinders, we can connect it to the ship in 2 minutes. Before, it took us significantly longer.

- Egil Johansen, Driftsansvarlig Bygg & Anlegg, Bergen Havn.

The gangway at Bergen Port was upgraded with several deliveries:

• Laid a 250-meter piping system
• Installed cylinders for lateral displacement of the gangway for greater flexibility along the ship’s side
• HPU with environmentally friendly hydraulic fluid
• Cabinet for HPU for weather and noise protection
• Radio control, control cabinet, with Tosibox, which can be connected to 4G for troubleshooting and remote programming
• Electrical cabinet
• Overhaul of wheelhouses for lateral displacement of the gangway

FACT

  • IndustryMarine
  • Customer: Bergen Havn
  • Delivery:
    HPU (hydraulic unit) and shelter, Cylinders, piping system, overhaul of wheelhouses, radio control, control cabinet, electrical cabinet, environmentally friendly oil, and service agreement
  • When: 2022
  • Delivered by Servi Group

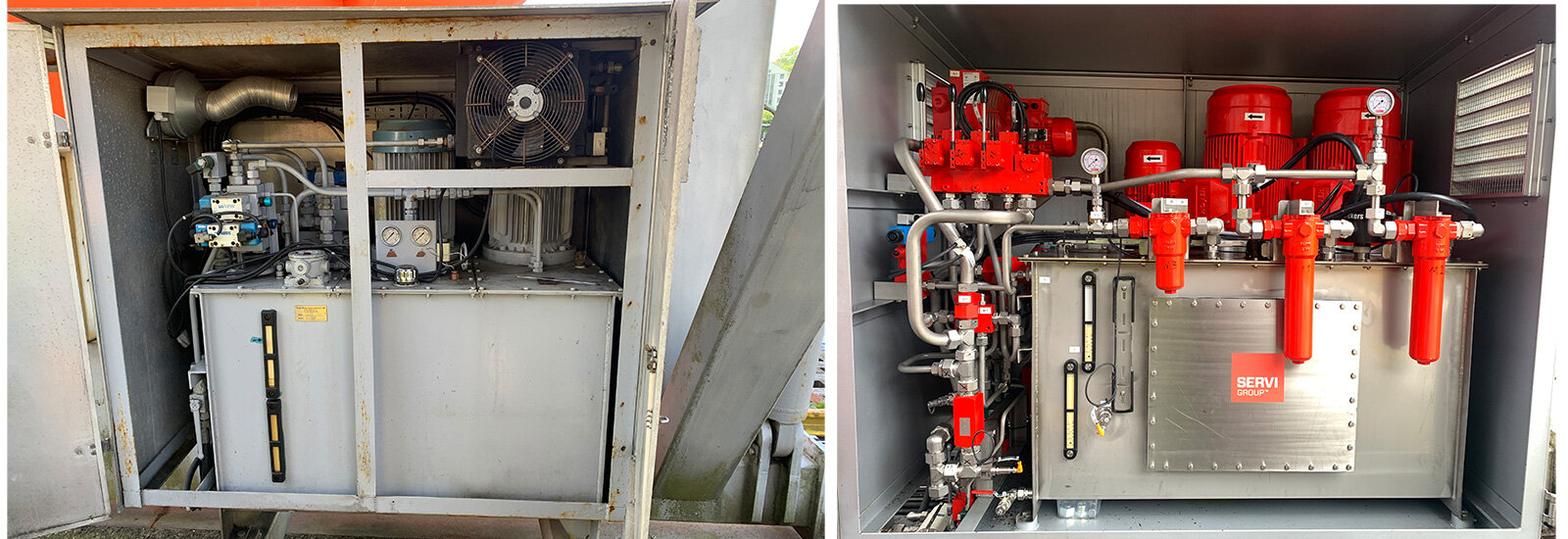

Before and after: The old system ran at 15kwh, even with little load, there was a lot of noise and high electricity consumption. With the new system, noise was removed (from 97 decibels to 69 decibels) and the electricity consumption of the unit was reduced, from 15 to 4kwh when the ship is docked. The hydraulic unit is service-friendly – the filter and components are easily accessible for service. In addition, troubleshooting is easy.

Service agreement

In addition to the delivery above, Servi has signed a service agreement with Bergen Port, which includes inspections and condition checks based on operating patterns and environment.

• Filter service
• Inspection/maintenance of electrical cabinet
• Oil analysis
• Functional testing of the system
• Control of inductive sensors, thermostat/cooling, level guard, and cylinder
• Inspection of pipes and hoses
• Timing of speeds on the different functions
• General condition of the system with report

Need a service agreement?

Upgrading existing facilities extends the service life and makes the system both live longer and perform better.

Tim Karlsen (left) and Even Solheim from Servi Group in Bergen after completing the assignment for Bergen Port
