Tailor your cylinder

Most of what we supply is specially adapted to the customer's wishes, but we also have standard cylinders. These have a cylinder configurator that you can use to draw the cylinder the way you want it.

In the configurator, you can, on your own, select the 3D model that suits your drawing program. You get strength, flex and volume on the screen. In addition, you can take out a data sheet and ask for a quote.

You can tailor the cylinder types from our standard series yourself. If you do not quite meet your wishes, it is possible to enter a comment in the configurator about additional adaptations. Our engineers can thus specially adapt the design according to wishes and needs.

Which cylinder suits your needs?

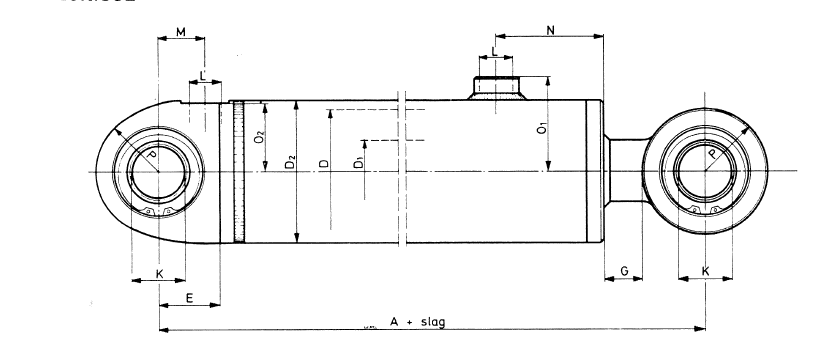

Image of a technical drawing of cylinder CD10

CD10: Double-acting cylinder

The CD10 is a robust double-acting cylinder, designed for working pressures up to 225 bar. The cylinder type is particularly suitable for . In the configurator, it is available in 2 variants.

Make a CD10 model

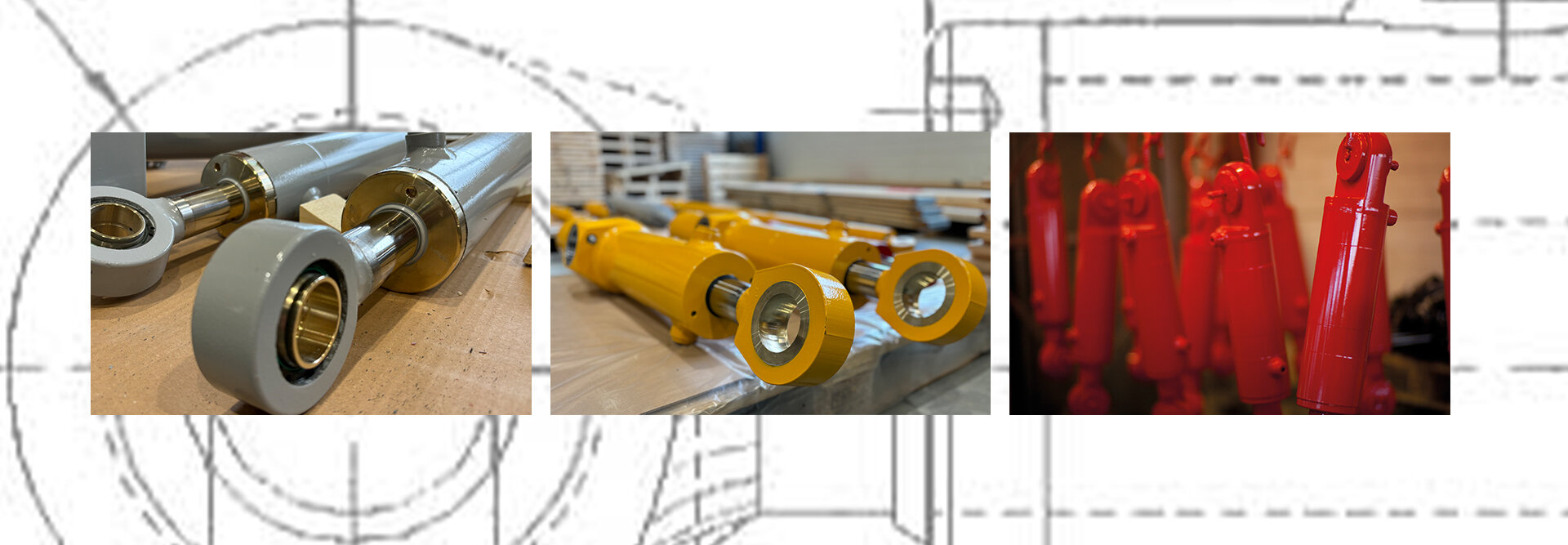

Image of three different cylinders in grey, yellow and red

CD25: Double-acting cylinder

The CD25 is a compact and robust double-acting cylinder designed for working pressures of up to 250 bar, and is our newest and best-selling standard cylinder. The CD25 is type-approved by DNV, it is also designed within a number of regulations and will be able to be certified by the
most recognized control bodies such as ABS, Lloyds etc.

Make a CD25 model

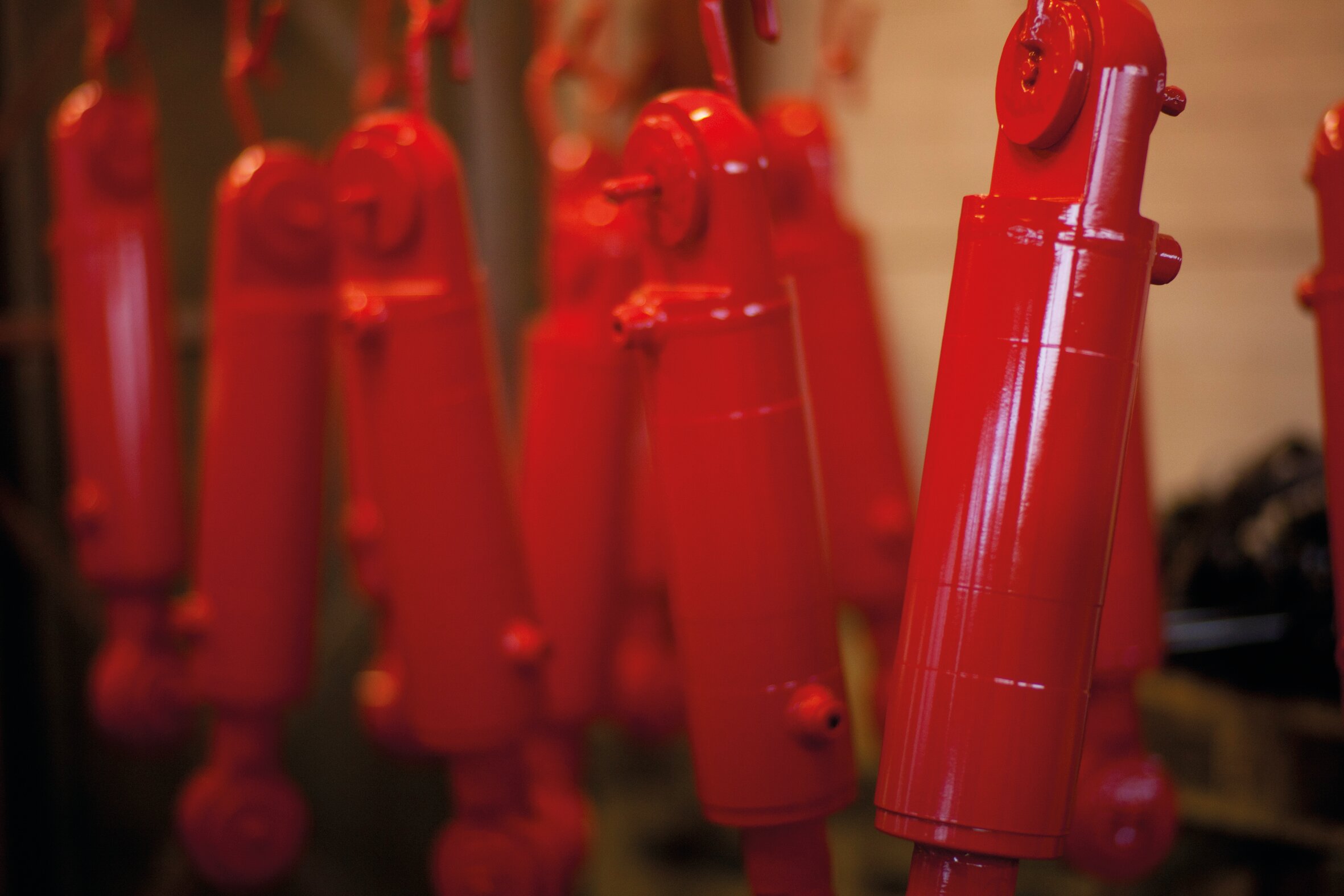

Red CD25 cylinders hanging after having been painted

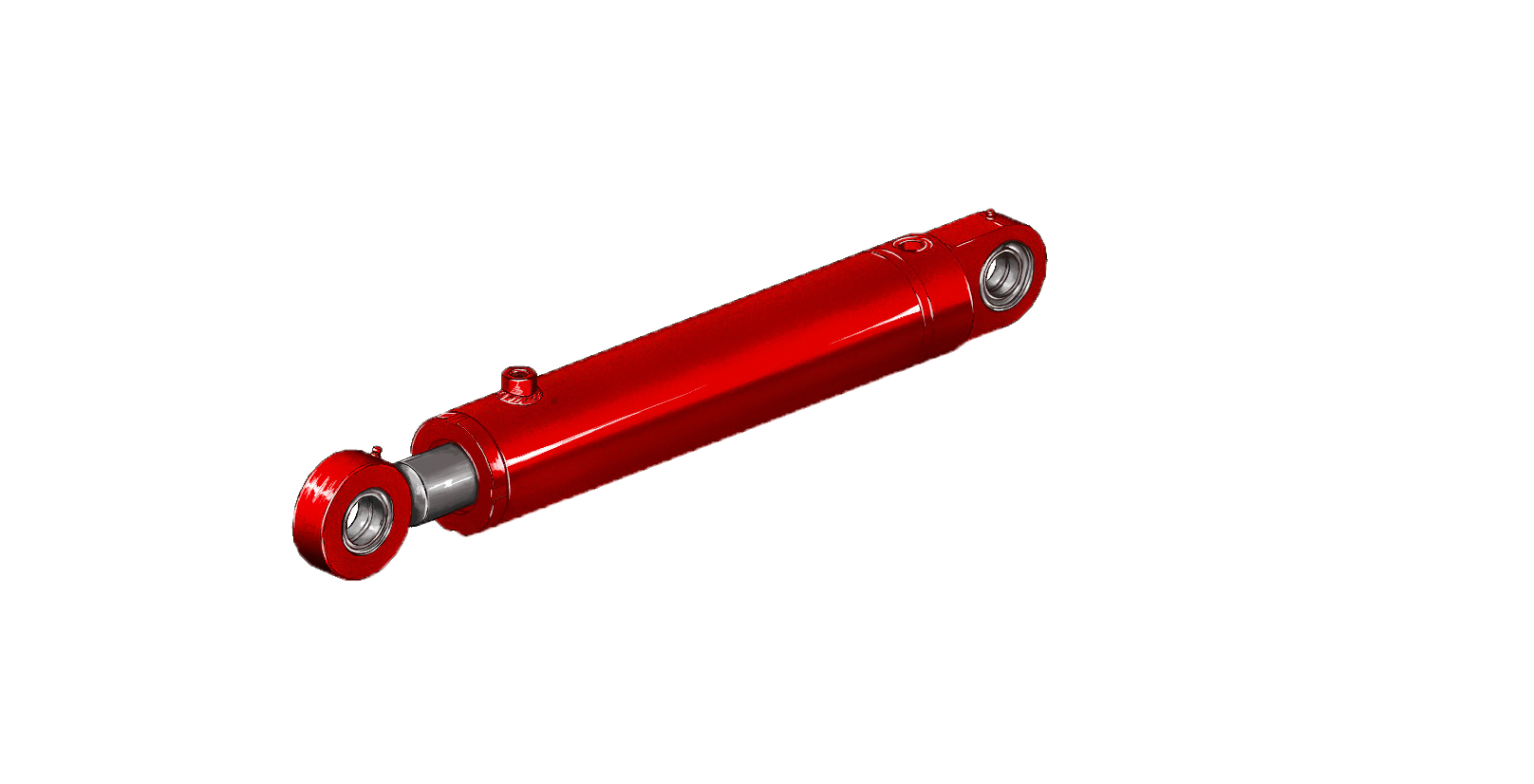

Red drawing of an industry cylinder

Industrial cylinder: Double acting

For simpler cylinders without class requirements and material traceability, we offer 3 different designs. A series for 250 bar, a series for 400 bar and a stainless series for 200 bar.


Make industrial cylinder model

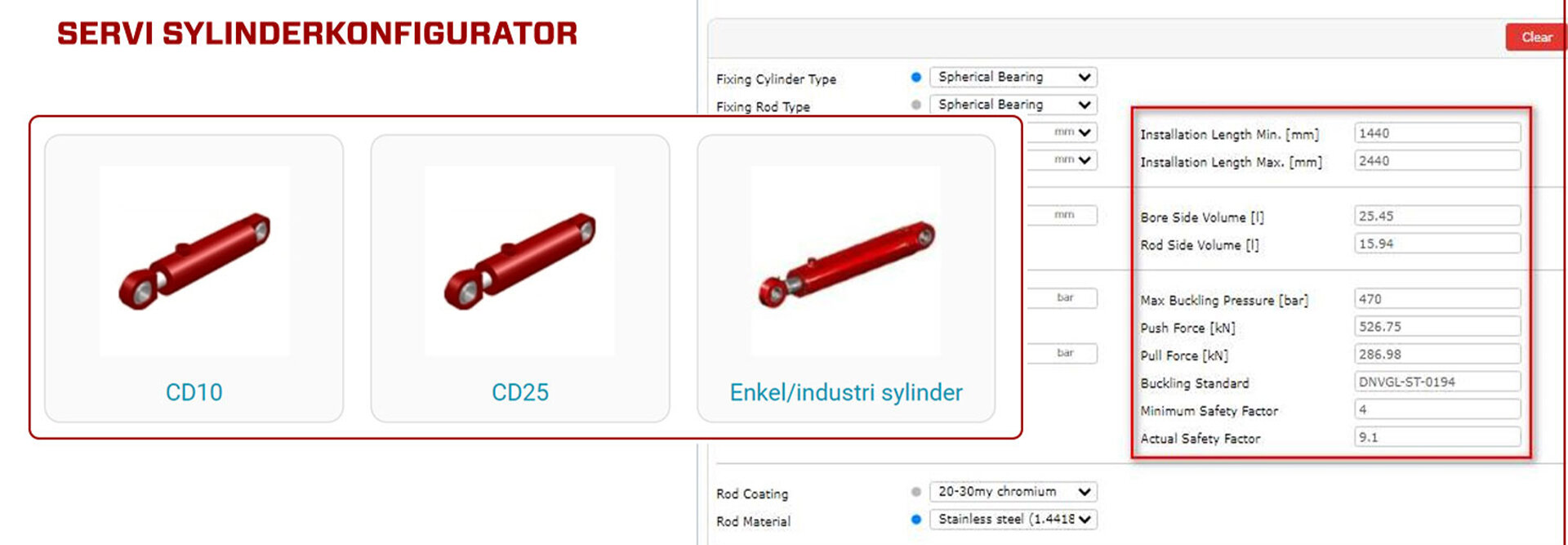

Image from the cylinder configurator where you can customize CD10, CD25, or industrial cylinders

Go to the cylinder configurator

Then choose between CD10, CD25 or industrial cylinder.
