GPR

NDT Non-destructive test method in hardened concrete.

GPR/Georadar is used to locate rebar, post-tension cables, pipes and other embedded objects in concrete. It can also identify cavities, cracks, and other defects.

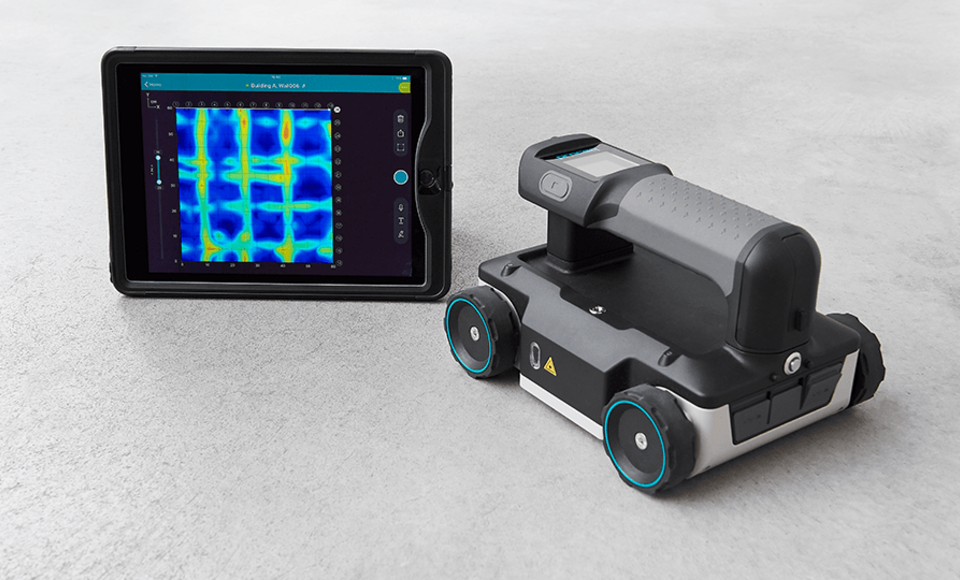

Complete 2D and 3D imaging of the rebar's location. Data is sent wirelessly to iPad with live view of measurements.

• GPR is a fast and efficient method that does not require drilling or destruction of the concrete structure. It provides high-resolution images and can be used on both new and existing designs.
• GPR uses electromagnetic waves to scan under the surface of concrete. An antenna emits high-frequency pulses that are reflected back when they hit different materials below the surface.
• A typical GPR system consists of a control unit and an antenna. The control unit controls the signals and records the responses, while the antenna sends and receives the electromagnetic waves.
• Comes complete but without iPad. This must be purchased separately. An iPad can be used for several of our NDT models of Reinforcement Finders, GPR and Pundit.

It comes in 3 different models:

• GP 8800
• GP 8000
• GP 8100 PRO


GP 8800

Convenient size and suitable for small areas and particularly curved surfaces

Down to 65 cm, 400 to 6000 MHz

GP 8000


Draught, down to 85cm, 200 to 4000 MHz

Clear data and long line scanning

Ergonomic, and easy to handle

GP 8100

Large data density with 6 antennas

Down to 80cm, 400 to 4000MHz

Fast scanning of large areas

Accessories for GPR

Telescopic pole and tablet holder for the GP 8000 and GP 8100 models.
